ATTACKCAM F12

NUR   -  ONLY     AN/AUS     ON/OFF

NFPA MODE


HOT TRACKER

RESOLUTION 160x120

DISPLAY 3,2"


0.04° / 40 MK - 25HZ

BILDSPEICHER/Image Storage (8GB)

WATER, DROP AND FIRE PROOF

Gewicht / Wight  380 Gr.

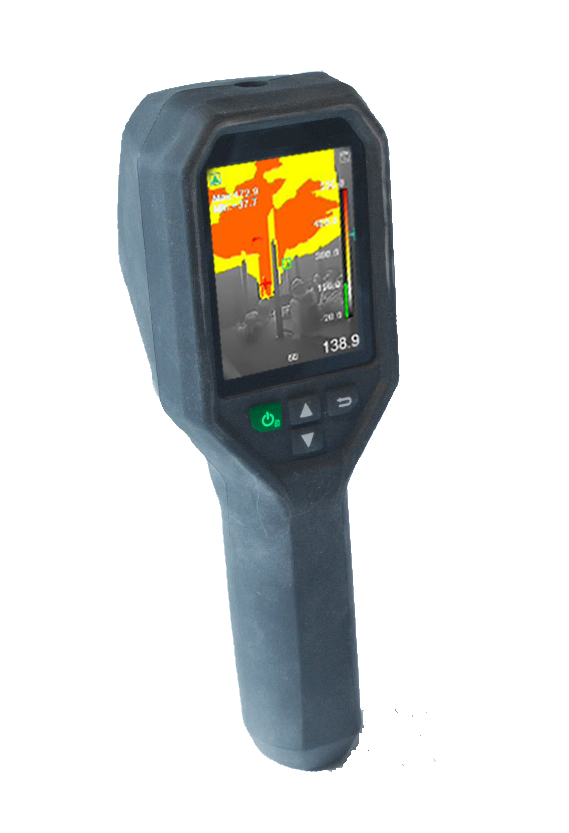

F12 Attackcam is the thermal imaging camera for every Fire Fighter.

The F12 is easy to operate with firefighter gloves.

With the one-button operation, the camera starts within 5 seconds. It is light (380g)

and extremely robust, can withstand a fall of two meters on concrete and

remains fully functional at temperatures of up to 260°C (three minutes).

Thus, the F12 is a thermal imager for indoor attack.





€ 999,- netto*



Facts Attackcam F12

- Cheapest thermal imaging camera for the BOS area / indoor attack

-Lightweight, compact, robust and user-friendly

-160x120 resolution / 3.2" display 320x240 /

-Best possible temperature sensitivity of the sensor with only 0.04°C

-NFPA firefighting modes

- Hot tracker for e.g. hot spots search with temperature measurement

-No stuttering/hacking of the image in High Sensitivity Mode due to 25 Hz. Technology

- Start time 5 sec. / Running time 8 hours

-Save Pictures

- 25 HZ technology for smooth image display

-Image accuracy +-2°

-Central temperature measurement with constant display.

With the Attackcam F12 you always have an eye on what is happening.











The F12 starts within 5 sec. Due to the image display of 160x120 pixels and the

Temperature sensitivity of 0.04 degrees and the 25 Hz technology ensure a

sharp and optimal image display without time delay. The 3.2" screen with the

Resolution 320x240 complete the camera. The F12 only works in NFPA mode,

the hot tracker supports the user in his task.

And the whole thing at a price-performance ratio that is second to none.



The NFPA mode, is the standard mode for the fire and rescue units.

At temperatures -20° - 150°, the camera works black and white.

The temperature range 150° to 300° is shown in yellow. From 300° to 450°

the orange coloring takes place. Finally, you will get the heat source

from 450° to 600° red. The different color ranges are intended to

They support the different temperature ranges and hazards



Identify situations better. At the same time, the display also protects you from damage.

The hot tracker is the optimal function to e.g. embers, before or

to find the warmest point after a fire develops.

At the same time, the recorded temperatures are displayed on the screen.



In the measuring range from -20° to +600° degrees, all relevant

Areas covered for the presentation of the hazard analysis.

There is a constant display of the center/temperature measurement

in every fashion. The image accuracy of the Attackcam F12 is below +-2°.

The field of view of 32.9°V and 44.4°H is ideal for finding the source of a fire.



With the "gangster grip" and the viewing angle of 44°, rooms can be searched quickly.

With its 380g, the Attackcam F12 is optimal. Ergonomic and well-balanced in the hand.

the pointed water and dust protection and the passed 2 mtr. case concrete drop test rounds off

It stands out as a robust and user-friendly camera for every responder.

Due to the low weight, the attachment to the operational clothing with the retaining screw

and the retract is possible without any problems and no further burden on the emergency services. (Retract available as an option)



The battery life is up to 8 hours and the working time is shown on the display at all times.

You will receive a two-year warranty on all camera parts and a five-year warranty on the detector after registration.



Make an appointment for a test today.



You will receive the Attackcam F12 for free for testing.

And we will instruct you on the camera in a professionally qualified and contactless manner.

And, of course, we will also be happy to answer any questions you may have about what is happening in the market.

See your new camera for yourself.













Technische Daten / Technical Data

Image sensor Uncooled Focal Plane Arrays

Max. Resolution 160 × 120.

Pixel Pitch 17µm

Response waveband 8µm to 14µm

NETD < 40mK (@ 25 °C,F#=1.0)

Field of View 32,9° × 44,4 °

Focal length 3.1 mm

IFOV (mrad) 5.48 mrad

Min. Focus Length = 150 mm

Image Display

Monitor 320 × 240 resolution 3,2"





Accessories

Retract

Truck Charger aktiv



ATTACKCAM F20



MODE NFPA/SW/WS/TM



WÄRMEBILD /THERMAL ODER MFM MODE



HOT TRACKER

RESOLUTION 256x192

DISPLAY 3,2"



0.04° / 40 MK - 25HZ

TASCHENLAMPE / Flashlight

BILDSPEICHER/Image Storage (8GB)

WATER, DROP AND FIRE PROOF

Gewicht / Wight  380 Gr.

WIFI











€ 1099,-*

F20 Attackcam is the thermal imaging camera for every emergency worker

The F20 is easy to operate with firefighter gloves. The camera starts within 5 seconds.

It is light (380g) and extremely robust, can withstand a fall of two meters on concrete

and remains fully functional at temperatures of up to 260°C (three minutes).

Thus, the F20 is a thermal imager for indoor attack.





Facts Attackcam F20


- Cheapest thermal imaging camera for BOS area / indoor attack

-Lightweight, compact, robust and user-friendly

-256x192 resolution / 3.2" display 320x240 /

-Best possible temperature sensitivity of the sensor with only 0.04°C

-NFPA firefighting modes

-SW Light = Warm / Dark = Cold Mode

-WS Dark = Warm / Light = Cold Mode Ideal for people search

-Thermal mode for technical applications

- MFM Multi Fusion Mode: Normal image and thermal image are superimposed on each other to achieve an extremely clear image display.

- Hot tracker for e.g. hot spots search with temperature measurement

-No stuttering/hacking of the image in High Sensitivity Mode due to 25 Hz. Technology

- Start time 5 sec. / running time 6 hours

- 25 HZ technology for smooth image display

-Image accuracy +-2°

-Central temperature measurement with constant display.

-Image memory 90,000 images

-WIFI Connection

​​​​​​​

With the Attackcam F20 you always have an eye on what's happening.






The F20 starts within 5 seconds. Due to the image display of 256x192 pixels and the

Temperature sensitivity of 0.04 degrees and the 25 Hz technology ensure a

sharp and optimal image display without time delay. The 3.2" screen with the

Resolution 320x240 complete the camera. The hot tracker, image memory and the

different modes support the user in his task.

And the whole thing at a price-performance ratio that is second to none.


The NFPA mode, is the standard mode for the fire and rescue units.

At temperatures -20° - 150°, the camera works black and white.

The temperature range 150° to 300° is shown in yellow. From 300° to 450°

the orange coloring. Finally, the heat source from 450° to 600° is shown in red.

The different color ranges are designed to support the different temperature ranges

and danger situations to better recognize. At the same time, the display also protects you from damage.

The hot tracker is the optimal function around e.g. embers, before or after a fire development

to find the warmest spot. At the same time, the recorded temperatures are displayed on the screen


In the measuring range from -20° to +600° degrees, all relevant areas are

for the presentation of the hazard analysis. There is a constant presentation

of the center/temperature measurement in any mode. The image accuracy of the Attackcam F20

is below +-2°. The field of view of 32.9°V and 44.4°H is ideal for finding the source of a fire.

With the "gangster grip" and the viewing angle of 44°, rooms can be searched quickly.

With its 380g, the Attackcam F20 is optimal. Ergonomic and well-balanced

in the hand . the pointed water and dust protection and the passed 2 mtr. Concrete drop test case

rounds it off as a robust and user-friendly camera for every emergency worker.

Due to the low weight, the attachment to the operational clothing with the retaining screw

and the retract is possible without any problems and no further burden on the emergency services. (Retract available as an option)


It is possible to use a Wifi connection, as well as to save

of up to 90,000 images on the camera. The integrated flashlight can be used conventionally

or to support the MFM system.



The battery life is 6 hours and the working time is shown on the display at all times.

You get a two-year warranty on all camera parts and a five-year warranty on the detector

after registration.










Make an appointment for a test today.

You will receive the Attackcam F20 for free for testing.

And we will instruct you on the camera in a professionally qualified and contactless manner.

And, of course, we will also be happy to answer any questions you may have about what is happening in the market.

See your new camera for yourself.











Technische Daten / Technical Data

Image sensor Uncooled Focal Plane Arrays

Max. Resolution 256x192.

Pixel Pitch 17µm

Response waveband 8µm to 14µm

NETD < 40mK (@ 25 °C,F#=1.0)

Field of View 32,9° × 44,4 °

Focal length 3.1 mm

IFOV (mrad) 5.48 mrad

Min. Focus Length = 150 mm

Image Display

Monitor 320 × 240 resolution 3,2’

2 MP visuelle Kamera / Cam







Accessories

Retract

Truck Charger aktiv











* Ohne Mehrwertsteuer / with no tax   -Alle Angaben ohne Gewähr. Technische Veränderung jederzeit möglich.  --All information is provided without guarantee. Technical changes possible at any time.
